LED Bar 32" 7LED 3BUC Gemini

Descriere

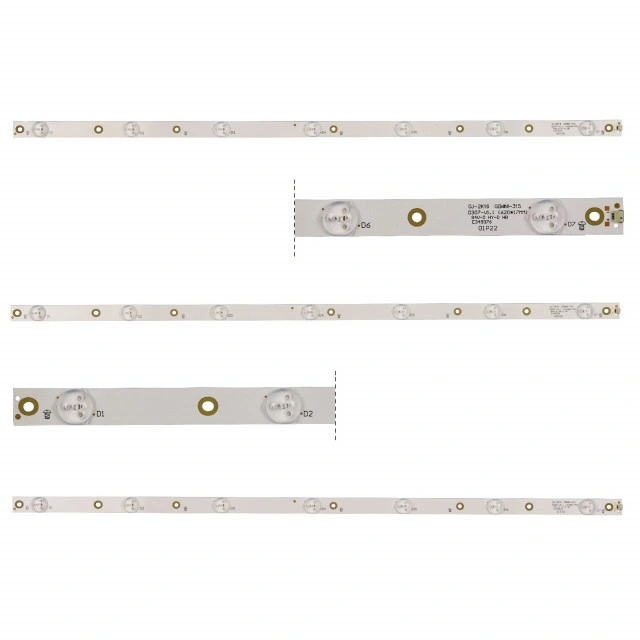

Kit service LED / DLED / OLED Backlight Panel TV 32 inch. Setul contine 3 barete din aluminiu avand dimensiunile: 620mm x 17mm continand fiecare 7 leduri cu tensiunea de 3V / LED adica 21V/bareta. Curent alimentare: 360mA, conector M3. AOC Evertop LG Philips Samsung Sharp Sony Cross Reference: 01L68-2 01N01 01N18 01P26 11000012403PHJL.B7-2 145NBP40HAC92 210BZ07D043535C04D 200323.53L 315LM00002 32E200E 705TLB32B33TCC00E 705TLB3243030C03L 705TLB32B3535C00D 996599001064 996596102761 996592001082 D2P5-315_GJ-2K16 D307-V1.1 D307-V1.2 D307-V2.2 D307-V3.1 FZ1-FZ2 GEMINI-315 GJ-2K16 D2P5-315 D307-V2.2 (620x17mm) GJ-D2P5-3153X7AHV2-D GJD2P53153X7AHV2-D GJ-2K16 GEMINI-315 D307-V1.1 HY-D-HR KDL-32R330B LB32080-V0-00 LB-PF3030-LB-F3528-GJX320307-H XPH200315.B35-3V.KC Backlight Strips Array. Display / Panel type: TPT315B5-03TV3AQ TPT315B5-DXJSFE TPT315B5-HVN05 TPT315B5-WHBN0.K TPT315B5-WHBN085.K AOC / TPV. Specificati la comentarii comanda: marca / model aparat si codul baretelor vechi / originale.

Compatibil cu LCD / LED TV Philips model:

32HFL3010T/12
32HFL3010W/12

32LK500BPLA
32PFH4300/12
32PFH4101/88
32PFH4309/88
32PFH5300/88
32PFH5501/88
32PFK4100/12
32PFL3208H/12
32PFL3208K/12
32PFL3208T/12
32PFL4258H/12
32PFL4258K/12
32PFL4258M/08
32PFL4258T/60
32PFS4132/12
32PFS4132/62
32PFS5501/12
32PFT5501/12
32PFT5501/60
32PHH4100/88
32PHH4101/88
32PHH4109/60
32PHH4109/88
32PHH4200/88
32PHH4309/60
32PHH4309/88
32PHH4509/88
32PHS5301/12
32PHT4101/60
32PHT4131/12
32PHT4201/12
32PHT4201/60
32PHT5301/12
32PHT5302/12

LC-32LB261U
LC-32LD170E ...
